NXTs-40.5 kV C-GIS Gas-Insulated Switchgear

NXTs-40.5 C-GIS Gas-Insulated Switchgear
NXTs-40.5 C-GIS Gas-Insulated Switchgear

NXTs-40.5 kV C-GIS Gas-Insulated Switchgear

A 40.5 kV three-phase common-tank compact C-GIS with an Ingress Protection 67 (IP67) fully sealed gas compartment, annual leakage rate ≤0.01%, and more than 90% footprint savings compared with traditional AIS.

No on-site gas refilling
Annual leakage rate ≤0.01%
31.5 kA short-circuit breaking
Three-phase common-tank structure
Top / side bidirectional extension
IP67 stainless-steel gas compartment
Model:NXTs-40.5
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Key Benefits of NXTs-40.5 kV C-GIS Gas-Insulated Switchgear

IP67 Fully Sealed Gas Compartment

The 40.5kV C-Gas Insulated Switchgear features an IP67 fully sealed gas compartment with a 304 stainless-steel laser-welded gas tank. Equipped with helium leak detection technology, the Metal Enclosed Switchgear achieves an annual leakage rate of ≤0.01%, ensuring long-term reliable insulation performance without gas refilling for up to 30 years.

Ultra-compact Design

As a compact C-GIS Switchgear solution, this Compact Gas Insulated Switchgear saves more than 90% of floor space compared with traditional AIS equipment. Its space-saving design makes it ideal for substations, underground rooms, renewable energy projects, and space-constrained medium voltage power distribution applications.

Gas-free On-site Extension
The 40.5kV C-GIS Switchgear supports flexible top and side extensions. All gas filling and leak testing processes are completed in the factory before delivery, eliminating on-site gas handling and simplifying installation for medium voltage distribution projects.
Multiple Safety Interlocks
The Gas Insulated Metal Enclosed Switchgear is equipped with advanced mechanical and electrical interlocks to prevent operational errors and improve system safety. The intelligent safety design controls cable compartment access based on operating conditions, ensuring reliable protection for power distribution systems.

Product Overview

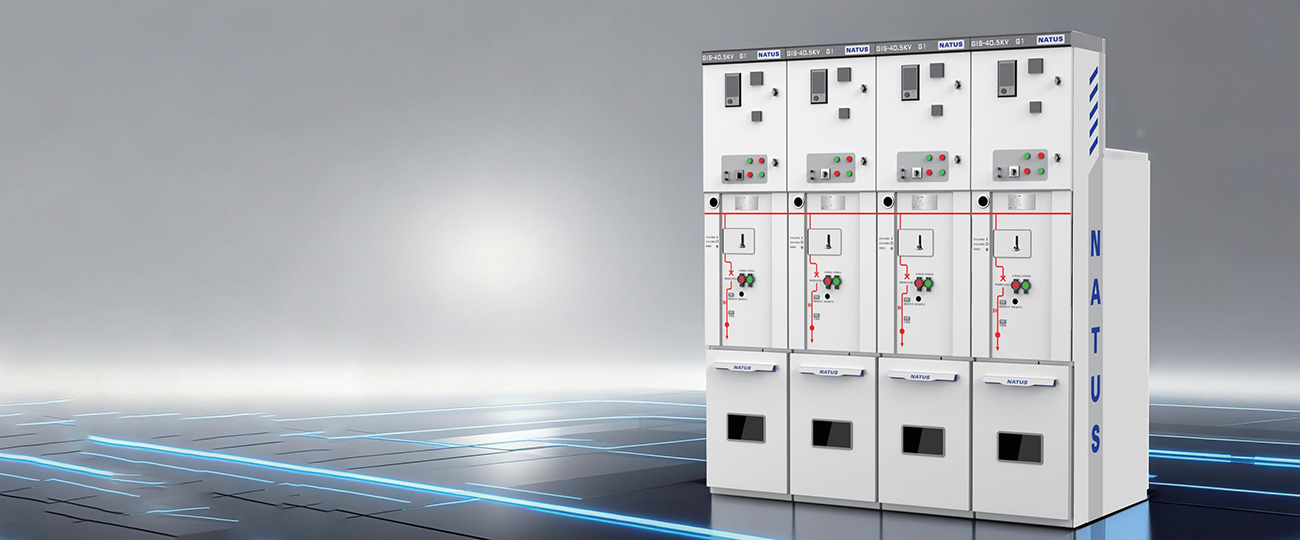

NXTs-40.5 is a new-generation 40.5 kV sulfur hexafluoride (SF6) gas-insulated compact metal-enclosed switchgear developed by NATUS Electric, using a three-phase common-tank structure and modular design.
The 40.5 kV C-GIS Gas Insulated Switchgear consists of four independent compartments: circuit breaker gas tank compartment (including busbar and three-position disconnector), mechanism compartment, cable compartment and instrument compartment. The circuit breaker and disconnector can be configured as independent sealed gas compartments. All high-voltage primary components are fully sealed inside the stainless-steel gas tank and are protected from dust, moisture, small animals and other external environmental factors. It supports both top extension and side extension, with no gas handling required during on-site installation. The NXTs-40.5 kV C-GIS Gas-Insulated Switchgear has passed full series type tests and is widely used in 40.5 kV distribution scenarios such as utility distribution, renewable energy, industry and transportation.
NXTs-40.5 kV C-GIS Gas-Insulated Switchgear

NXTs-40.5 kV C-GIS Gas-Insulated Switchgear Structure

design ct 01.jpg

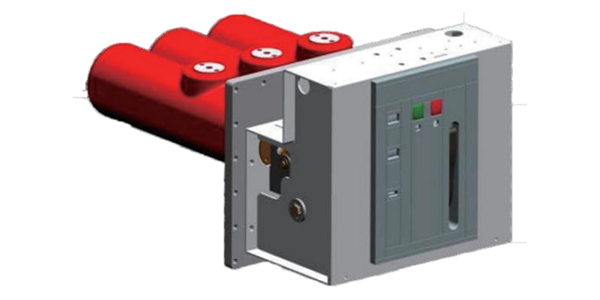

The three-phase poles of the circuit breaker are placed horizontally in the gas chamber, enabling convenient connection with other components;

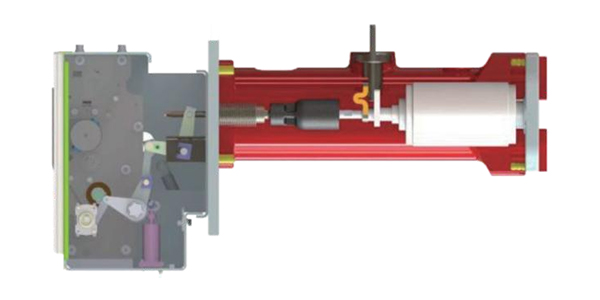

The operating mechanism of the circuit breaker is connected to the poles through a straight bellows to transmit power;
design ct 02.jpg

Technical Advantages

01.
Three-phase Common-tank Fully Sealed Technology
All high-voltage live parts are integrated inside an IP67 stainless-steel gas tank and isolated from external environmental influence. The annual leakage rate is ≤0.01%, supporting long-term stable operation with reduced maintenance needs.
02.
Magnetic Fluid Sealing Transmission
The three-position switch operating mechanism adopts magnetic fluid sealing between the mechanism and gas compartment, improving sealing reliability compared with traditional bellows sealing.
03.
Modular Gas-free On-site Extension
Standardized unit design supports top and side extension. Field assembly uses plug-in busbar connectors, without on-site gas filling or gas treatment.

Technical Specifications

Basic Parameters

Product Model

-

NXTs-40.5

Rated Voltage

kV

40.5

Rated Frequency

Hz

50/60

Rated Power Frequency Withstand Voltage (1 min)

kV

95/110

Rated Lightning Impulse Withstand Voltage

kV

185/215

Rated Current of Main / Branch Bus

A

630, 1250, 1600, 2000, 2500, 3150

Rated Short-time Withstand Current

kA

25/31.5/40, 4 s

Rated Peak Withstand Current

kA

63/80/100

Rated Short-circuit Breaking Current

kA

31.5

Rated Short-circuit Making Current

kA

63/80/100

Gas-tight Chamber Protection Class

-

IP67

Switchgear Cabinet Protection Class

-

IP4X

Insulating Gas

-

SF6

Rated Working Pressure (20°C gauge pressure)

MPa

0.03 (relative pressure)

Minimum Working Pressure (20°C gauge pressure)

MPa

0.02 (relative pressure)

Rated Operating Sequence

-

O-0.3 s-CO-3 min-CO

Mechanical Life of Circuit Breaker

Times

20,000

Mechanical Life of Three-position Mechanism

Times

2,000

Rated Voltage of Auxiliary Circuit

V

DC 24, 48, 110, 220; AC 220

Power Frequency Withstand Voltage of Auxiliary Circuit for 1 min

kV

2

Internal Arc Rating

kA/s

AFLR, 31.5 kA, 1 s

Annual Gas Leakage Rate

-

≤0.01%

Overall Dimension (W × D × H)

mm

600/800 × 1400 × 2300

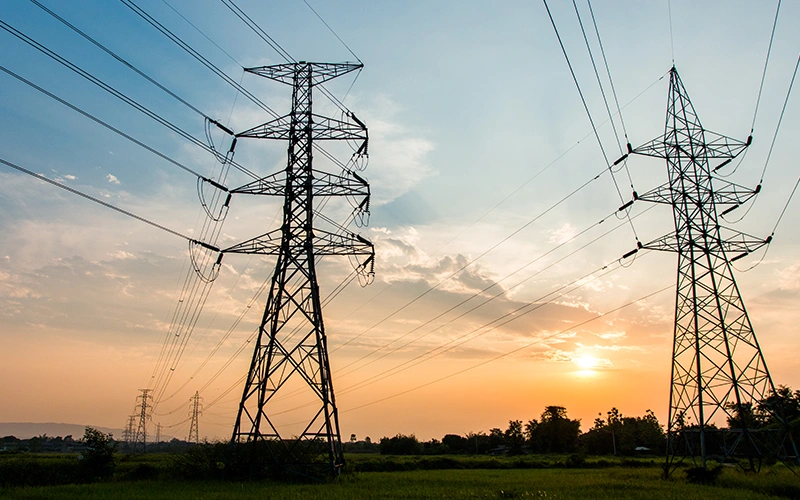

Application
dtl-application 01.webp
dtl-application 02.jpg
dtl-application 03.jpg
dtl-application 04.jpg
dtl-application 05.jpg
dtl-application 06.jpg

NXTs-40.5 kV C-GIS Gas-Insulated Switchgear FAQ

Yes. The gas tank uses 304 stainless-steel laser welding and is certified by helium mass spectrometry leak detection. Its protection class reaches IP67, fully preventing dust and water ingress.
The annual leakage rate is ≤0.01%. Under normal operation, no gas refilling is required within 30 years, truly achieving maintenance-free operation.
Top extension and side extension are supported. All gas tanks are filled and leak-tested at the factory. On-site extension only requires plug-in busbar connectors and requires no gas handling operation.
Magnetic fluid sealing uses magnetic fluid to form a sealing liquid ring under a magnetic field. Compared with traditional bellows sealing, it provides zero leakage, high reliability, long service life and good pressure resistance.
The standard high-voltage gas-insulated switchgear supports altitudes ≤2000 m. For altitudes above 2000 m, customized solutions can be provided by adjusting insulation design and gas pressure.
The NXTs-40.5 C-GIS gas-insulated switchgear has passed the 31.5 kA/1s internal arc test and has a built-in directional pressure relief channel. In case of fault, arc energy is safely released outside the cabinet and the door will not burst open, fully protecting personnel safety.
Embedded pole and assembled insulating cylinder options are supported. Embedded poles provide better insulation performance and suit high-altitude and heavily polluted environments; assembled insulating cylinders offer better economy and suit general environments.
