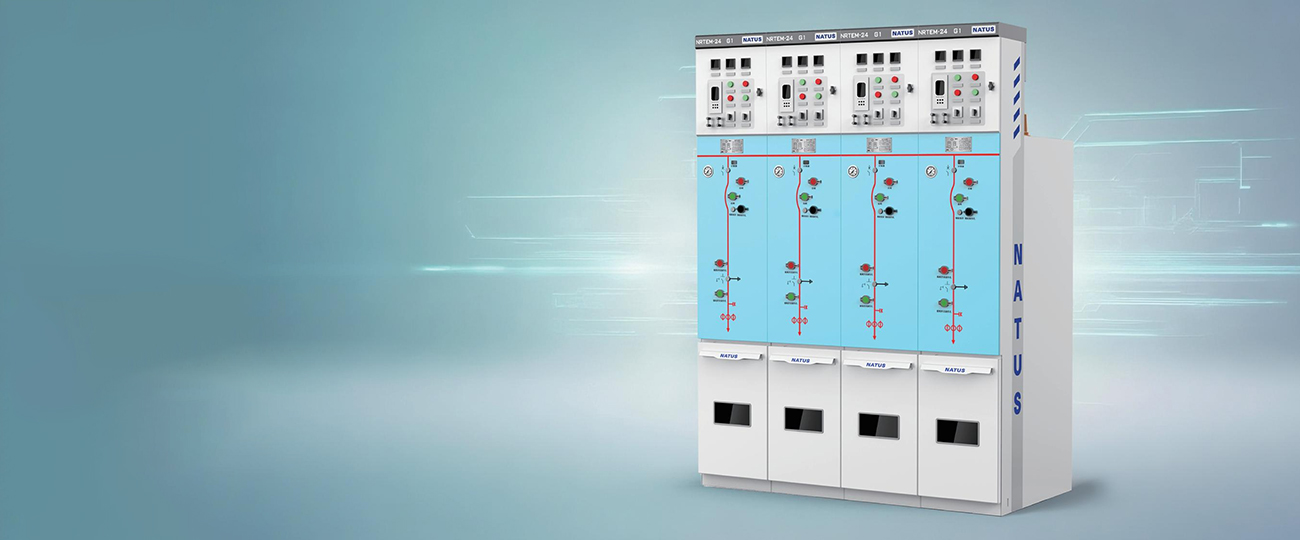

NRTem-24 kV SF6-Free Gas Insulated RMU

NRTem24 SF6-Free Gas Insulated RMU
NRTem24 SF6-Free Gas Insulated RMU
NRTem-24 kV SF6-Free Gas Insulated RMU

A 24 kV sulfur hexafluoride-free (SF6-free) environmentally friendly gas-insulated ring main unit with an IP67 fully sealed gas tank, Internal Arc Classification (IAC) arc fault protection, low-carbon operation and maintenance-free design.

630 A
SF6-Free
IAC 20 kA/1 s
Partial Discharge ≤10 pC
Five-Prevention Interlocking
IP67 Stainless-Steel Gas Tank
Model:NRTem-24
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Key Benefits

SF6-free Environmental Design
Uses environmentally friendly gas instead of SF6 to enable low-carbon operation throughout the product lifecycle and comply with IEC 62271-200.
IP67 Stainless-Steel Gas Tank
304 stainless-steel laser-welded gas tank with helium leak detection ≤1×10⁻⁹ Pa·m³/s, supporting stable operation in extreme environments.
IAC Arc Fault Protection
20 kA/1 s internal arc withstand capability with a dedicated pressure relief channel improves personnel and equipment safety.
Parallel Breaking and Arc Extinguishing
Multi-break synchronous interruption with a patented structure provides reliable and maintenance-free arc extinguishing performance.

Product Overview

NRTem-24 is a 24 kV SF6-free environmentally friendly gas-insulated ring main unit designed for prefabricated substations, switching stations, renewable energy projects and industrial distribution, replacing traditional SF6 ring main units.
The fully sealed IP67 stainless-steel gas tank integrates a three-position load switch or vacuum circuit breaker and uses an environmentally friendly insulating medium with no greenhouse gas risk. The sf6 free gas insulated switchgear has passed strict helium leak detection, partial discharge, internal arc and seismic tests. It provides five-prevention interlocking, electric/manual dual operation and four-remote communication, and is suitable for high-humidity, salt-fog and dusty operating conditions.

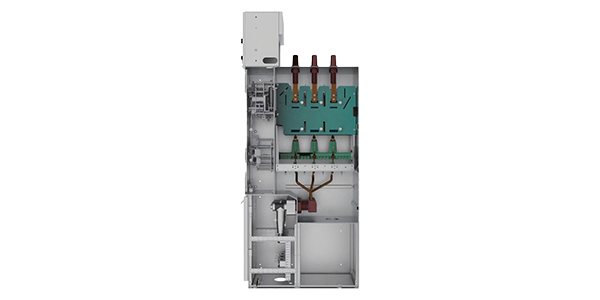

Product Structure

NRTem-24 kV SF6-Free Gas Insulated RMU
Prohibited from operating the three-position switch electrically or manually when the circuit breaker is in the closed position. The three-position switch adopts dual-hole operation mode to prevent accidental operation of the grounding switch during isolation closing procedures.
When used as a double-busbar sectioning scheme, a mechanical anti-misoperation device with three locks and two keys can be installed. The cabinet door may only be opened for operation and maintenance when both the grounding position and circuit breaker are in the closed position.

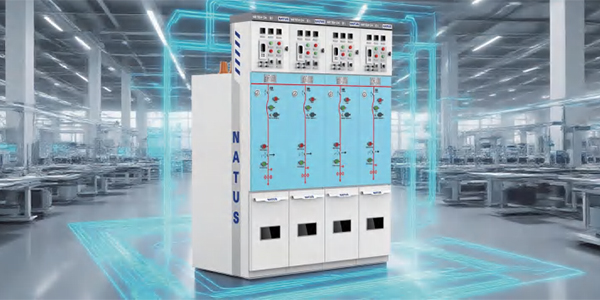

NRTem-24 kV SF6-Free Gas Insulated RMU

Technical Advantages

01.
IAC and Multiple Safety Protection
The 24 kV SF6-Free Gas Insulated RMU integrates advanced safety protection features, including internal arc protection, pressure relief channels, closed-door operation, and optional three-lock two-key interlocking systems, ensuring safe operation and high reliability for medium voltage switchgear applications.
02.
Intelligent Operation and Maintenance
The sf6 free ring main unit supports intelligent operation and maintenance with four-remote functions, partial discharge monitoring, pressure monitoring, and remote diagnosis, enabling real-time condition monitoring and efficient management of 24kv switchgear systems.
03.
Flexible Expansion
Designed for flexible deployment, the 24kv rmu features side and top expansion capability, a prefabricated gas tank structure, and a 50% shorter retrofit cycle, providing scalable and cost-effective solutions for modern gas insulated switchgear networks.

Technical Specifications

Basic Parameters
Rated voltagekV24
Rated power frequency withstand voltagekV50
Rated lightning impulse withstand voltagekV125
Rated frequencyHz50/60
Rated normal currentA630
Rated short-circuit breaking currentkA16/20
Rated duration of short-circuits4
Rated short-circuit making currentkA41.6/52
Rated power frequency cable test voltagekV24
Internal arc classification IAC AFL/AFLRkA20/1 s
Gas tank protection class—IP67
Rated working pressure (20°C)MPa0.045 (rated working pressure)
Minimum working pressure (20°C)MPa0.035 (rated working pressure)
Rated sequence of operations—O-0.3s-CO-3min-CO
Electrical and mechanical classes (earthing switch)—E2, M0
Electrical and mechanical classes (circuit breaker)—E2, M1

Application
新能源
工业行业
市政商业
交通枢纽

Product FAQ

Yes. It uses environmentally friendly insulating gas without SF6 or related carbon emissions.
Yes. The IP67 stainless-steel gas tank is suitable for outdoor, coastal and dusty environments.
The annual leakage rate is ≤0.1%, so gas replenishment is normally not required during operation.
The complete switchgear partial discharge level is ≤10 pC, which supports long insulation service life.
Yes. It supports four-remote functions and standard communication for seamless system integration.
