Key Benefits of ENERGON Intelligent Low-Voltage Switchgear System

Ultimate short-circuit withstand capability

The ENERGON Intelligent Low-Voltage Switchgear System has passed 120kA extreme short-circuit withstand type tests, providing high fault withstand capability and ensuring reliable operation in demanding low voltage electrical systems.

ARC SAFE arc-resistant technology

The low voltage draw out switchgear integrates a fully enclosed vertical busbar system with automatic safety shutters and IP4X protection, effectively preventing arc propagation and enhancing operator safety.

DTS bidirectional sliding transmission

The Dual-Directional Sliding Transmission System (DTS) supports movement between operating, disconnecting and testing positions with the cabinet door closed. This mechanism improves access to functional unit operations and helps streamline inspection and maintenance workflows in low voltage draw-out switchgear installations.

Form 4b full segregation design

The intelligent low voltage switchgear features a compartmentalized structure designed to separate functional units, busbars and cable areas according to the selected configuration. Form 4b separation supports organized access and helps limit the spread of faults between designated compartments. The applicable separation form should be confirmed against the final product configuration.

Product Overview

Developed by NATUS Electric, an experienced low voltage switchgear manufacturer, the ENERGON

The ENERGON intelligent low voltage draw-out switchgear system is developed by NATUS Electric for power distribution and motor control applications that require high current capacity, operational safety and flexible maintenance. Its modular cabinet architecture accommodates withdrawable, plug-in and fixed functional units, allowing engineers to configure the system according to circuit quantity, load requirements and installation space.

With main busbar ratings available up to 6300A, internal separation up to Form 4b and short-time withstand capability available up to 120kA for specified configurations, ENERGON is designed for demanding low-voltage distribution systems. Its ARC SAFE busbar protection and DTS draw-out mechanism provide additional support for operational safety and maintenance efficiency.

As an intelligent low voltage switchgear solution, ENERGON can integrate metering, communication and monitoring functions to help operators review electrical parameters and support distribution automation. The system can be configured for incoming feeders, outgoing feeders, motor control, busbar sections and other distribution functions.

Before specifying a low voltage draw out switchgear system, project teams should confirm rated voltage and current, fault withstand requirements, internal separation form, enclosure protection, installation dimensions, communication protocols and applicable standards with the manufacturer.

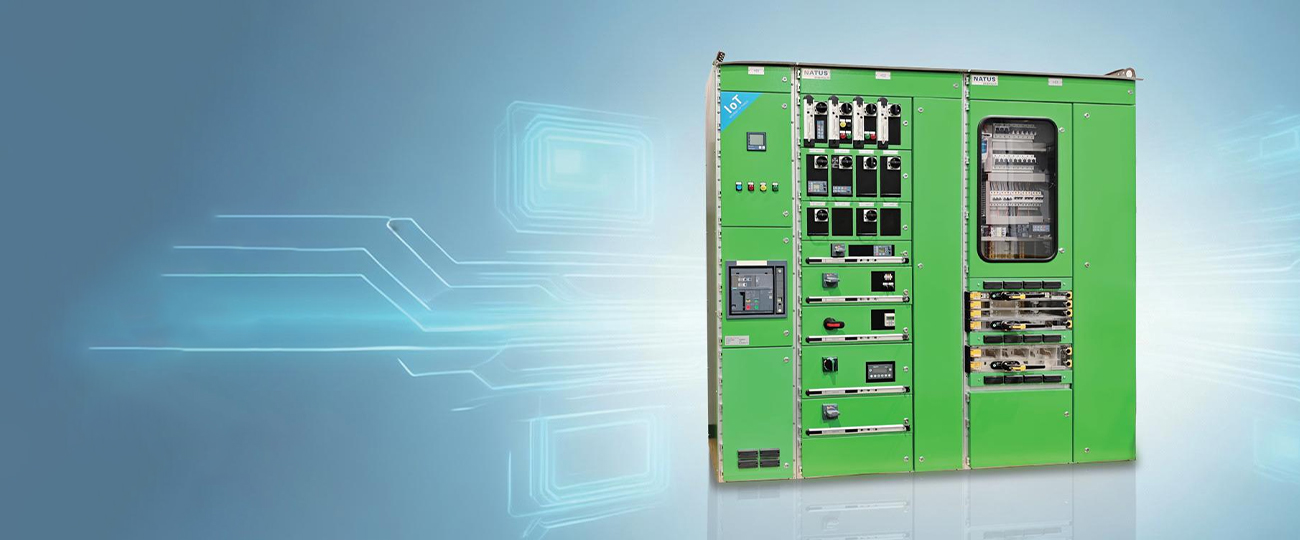

ENERGON Intelligent Low-Voltage Switchgear System

Structure of ENERGON Low Voltage Draw-Out Switchgear

1. Main busbar compartment

The main busbar compartment accommodates horizontal busbars with cabinet-top or cabinet-rear arrangements, depending on the selected configuration. The busbar system is designed to meet the specified rated current and short-circuit withstand requirements.

2. Circuit breaker compartment

This compartment accommodates incoming and outgoing circuit breakers or withdrawable functional units. The modular design allows engineers to configure feeder and motor control circuits according to project requirements.

3. Cable compartment

The cable compartment provides space for cable terminals, current transformers and associated connection components. Cable entry and routing options should be selected according to the switchroom layout and installation requirements.

4. Control circuit compartment

The control compartment houses secondary control components, meters and communication modules. Separation from primary circuits helps organize control wiring and facilitates inspection.

5. Modular Cabinet Configuration

ENERGON low voltage switchgear supports different functional cabinet types for incoming and outgoing feeders, motor control, capacitor compensation and other distribution tasks. Final cabinet selection depends on the electrical single-line diagram, load schedule and required control functions.

ENERGON Intelligent Low-Voltage Switchgear adopts a fully modular armored structure and consists of a cabinet body and withdrawable functional units.

The low-voltage cabinet is divided into five completely independent metal compartments, with core safety components including the ARC SAFE arc-resistant fully enclosed vertical busbar system, DTS bidirectional sliding mechanical transmission device, Linear Full-Engagement Explosion-Proof Door Locking Device, and patented mechanical code lock with 1,000 combinations.

Technical Advantages of Intelligent Low Voltage Switchgear

01.

Mechanical Coding Lock for Functional Unit Safety

ENERGON draw-out switchgear uses a mechanical coding lock with multiple code combinations to match compatible functional units with their designated compartments. This helps reduce the risk of inserting an incompatible unit and supports safer equipment operation.

02.

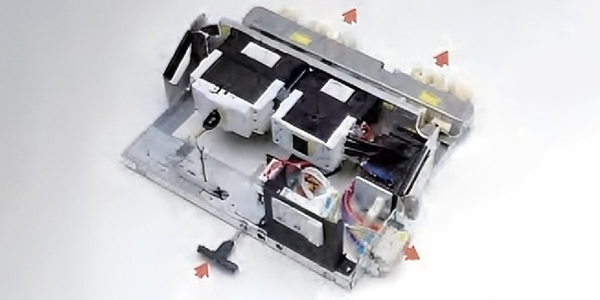

Modular Architecture for Flexible Configuration

The modular cabinet structure supports withdrawable, plug-in and fixed functional units, allowing the low voltage switchgear system to accommodate different distribution and motor control requirements. Cabinet arrangement, circuit quantity and operating access can be planned according to available space and maintenance needs.

03.

Intelligent Monitoring for Power Distribution Management

The intelligent low voltage switchgear can integrate meters, power quality monitoring modules and communication interfaces for remote data collection and system monitoring. Depending on the selected configuration, communication options support integration with existing distribution automation or energy management systems.

Technical Specifications

Electrical Parameters

Low-Voltage Switchgear Basic Parameters
Rated insulation voltage	Up to 1000 V
Rated working voltage	Up to 690 V
Rated frequency	50/60 Hz
Main busbar rated current	Up to 3200 A / 4000 A / 6300 A
Vertical busbar rated current	2000 A (MD cabinet)
Rated short-time withstand current	Up to 100/120 kA rms
Rated peak withstand current	220/264 kA
Internal arc fault	65 kA rms, 0.3 s, 725 V
Incoming and outgoing line switches	6300 A max.
DOL starting circuit	800 A max.

Structural Form

Basic Parameters
Cable access	Top / bottom
Wiring method	Front / back
Protection level	Up to IP54
Crashworthiness rating	IK10
Forms of segregation	2b / 3b / 4a / 4b
Material	Aluminum-zinc clad plate
Operating method	Single-sided / double-sided
Main busbar arrangement	Top / back
External dimensions	H 2200 mm; W 500/600/650/800/1000/1200 mm; D 500/700/800/1000 mm

Low-Voltage Switchgear Cabinet Type

Basic Parameters
PD cabinet	For main incoming, feeder, busbar section and bus contact applications using frame circuit breakers.
MD cabinet	MCC cabinet for withdrawable, plug-in, fixed and modular functional units, including fused disconnecting switch options.
FD cabinet	Multi-functional fixed installation cabinet for fixed component installation and PLC/DCS transition applications.
CD cabinet	Capacitor compensation cabinet with plug-in or fixed capacitor compensation units.
SD cabinet	Fuse cabinet with fuse unit.

1. Data centers

Data centers require reliable power distribution, clear circuit organization and efficient maintenance planning. ENERGON draw-out switchgear can be configured for incoming supplies, outgoing feeders and auxiliary power distribution, with intelligent monitoring options to support operational visibility.

2. Chemical and petrochemical industry

Industrial process facilities may require high current capacity, compartmentalized construction and enclosure protection suited to the installation environment. Switchgear selection should account for ambient conditions, electrical fault levels, ingress protection and any site-specific hazardous-area requirements.

3. Rail transit

Rail transit and critical infrastructure projects require structured power distribution and dependable equipment operation. ENERGON can be configured for appropriate distribution and auxiliary power applications, subject to project specifications and applicable railway or infrastructure standards.

4. Offshore platforms

For installations exposed to salt mist, humidity or limited maintenance access, buyers should evaluate enclosure protection, material suitability, corrosion resistance and environmental testing. The final switchgear configuration must be verified for the actual service conditions.

5. Factory construction

The ENERGON Intelligent Low-Voltage Switchgear System supports up to 36 high-density functional circuits to meet diverse motor control requirements. Flexible unit combinations adapt to changing production lines, while live maintenance capabilities help minimize downtime and maintain continuous operation.

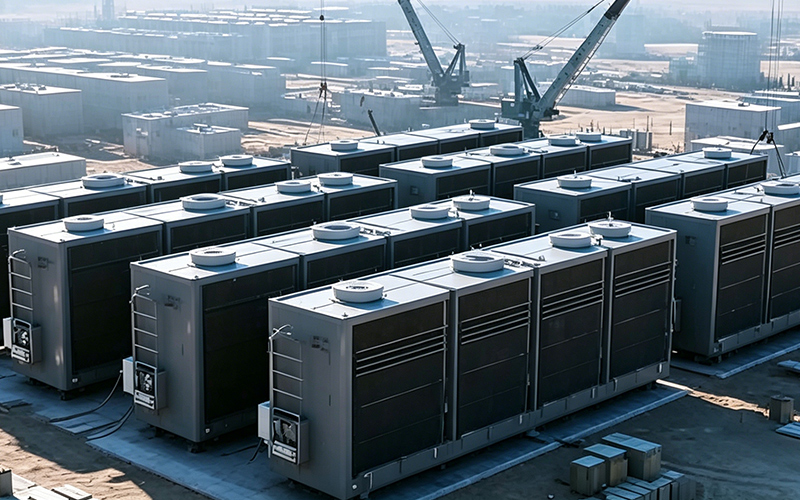

6. Energy storage industry

Designed for modern energy storage applications, the Low Voltage Power Distribution Equipment provides high current capacity for charging and discharging operations. Fast protection performance ensures battery safety, while intelligent monitoring supports efficient energy management and smart power control.

ENERGON Intelligent Low Voltage Switchgear FAQ

What is ARC SAFE arc-resistant technology? What are its advantages?

ARC SAFE is NATUS Electric's patented fully enclosed vertical busbar system with an automatic safety shutter. When a drawer is withdrawn, the shutter automatically closes to shield the busbar and maintain IP4X protection, eliminating electric shock risk during energized maintenance. The all-round insulation design also prevents arcs between contact chambers and limits fault expansion.

Can ENERGON Intelligent Draw-out Low-Voltage Switchgear System really be maintained while energized? Is it safe?

Yes. ENERGON supports energized replacement of functional units. DTS transmission enables door-closed operation with unchanged protection level throughout the process; the mechanical code lock prevents wrong insertion; and the ARC SAFE busbar shields energized parts, ensuring safe energized maintenance through multiple protections.

What is the difference between a PD cabinet and an MD cabinet? Where are they used?

A PD cabinet is the main incoming/outgoing cabinet used to install high-current frame circuit breakers (630A-6300A), suitable for system main incoming, busbar section and high-current outgoing. MD cabinet is a multifunction MCC cabinet used to install various small-capacity withdrawable / plug-in functional units, suitable for motor control and multi-circuit feeders.

What Makes ENERGON an Intelligent Low Voltage Switchgear System?

ENERGON can integrate intelligent meters, power quality modules and communication interfaces to support remote monitoring, fault diagnosis and power distribution management. Available protocols and functions depend on the selected configuration and project requirements.

Which communication protocols are supported? Can it connect to existing distribution automation systems?

Modbus-RTU is supported as standard. Profibus-DP, IEC 61850 and other mainstream communication protocols are optional, allowing seamless access to various distribution automation systems and enterprise energy management systems.

What is the highest protection class of the low voltage cabinet?

The standard low-voltage switchgear shell protection class is IP41 and can be customized up to IP54 to meet wet, dusty and other demanding environmental requirements.

What is the lead time for standard low-voltage switchgear cabinets?

The delivery cycle for standard PD / MD cabinets is 4-6 weeks. Customized products are determined according to customization scope, generally 6-8 weeks, and can meet urgent project requirements.

Can functional units be interchanged?

Functional units of the same model and current rating can be interchanged. Each unit is equipped with a unique mechanical code lock to prevent wrong insertion of units with different specifications.
