Home
High-Voltage Switchgear

NES-40.5 Metal-clad Withdrawable AC Switchgear

NES-40.5 Metal-clad Withdrawable AC Switchgear Copy
NES-40.5 Metal-clad Withdrawable AC Switchgear Copy

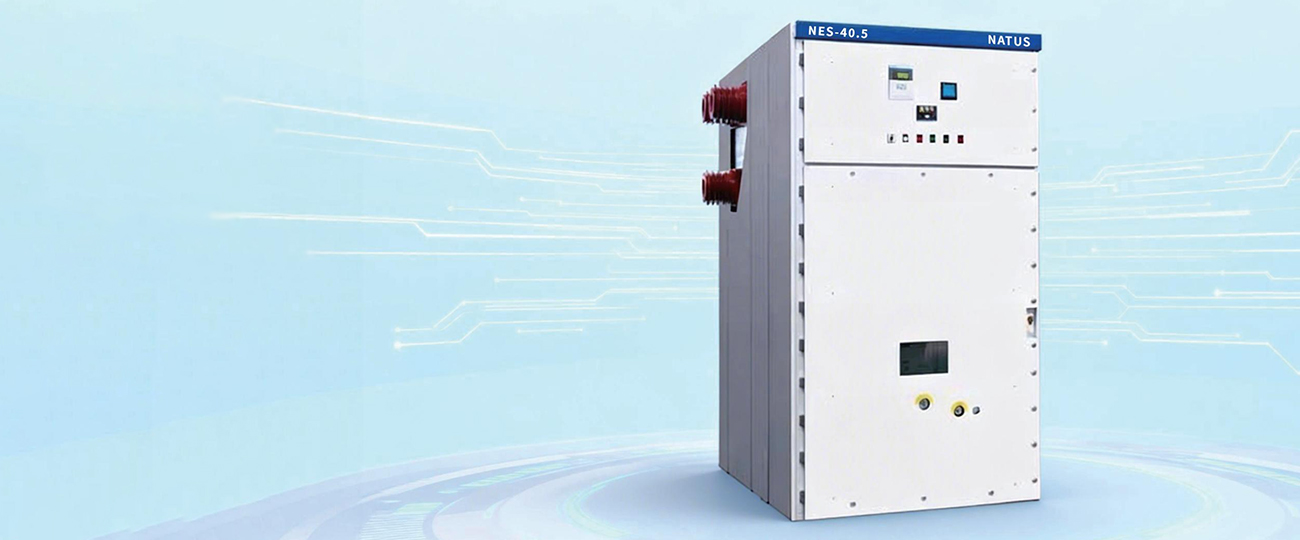

NES-40.5 Metal-clad Withdrawable AC Switchgear

40.5 kV indoor intelligent metal-clad withdrawable switchgear with forced mechanical five-prevention interlocking, a large cable compartment and suitability for frequent operation scenarios.

Fast Earthing Switch
40.5 kV Rated Voltage
Large Cable Compartment
31.5 kA High Breaking Capacity
Forced Mechanical Five-Prevention
Independent Pressure Relief Channels
Model:NES-40.5
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Download Product Brochure

Key Benefits of NES-40.5 Metal-clad Withdrawable AC Switchgear

Metal-clad withdrawable structure

The NATUS 40.5kV Metal-Clad Withdrawable Switchgear features a modular assembled cubicle design with high structural strength, enabling easy installation, maintenance, and reliable operation.

Forced mechanical five-prevention interlocking
The air insulated metal clad switchgear integrates a mechanical five-prevention interlocking system to prevent misoperation and enhance operator and equipment safety.
Large cable compartment
NATUS 40.5kV metal clad switchgear provides an enlarged cable compartment for multiple cable connections, flexible wiring, and convenient installation.
Fast earthing switch
Provides short-circuit making capability with a closing speed of ≥6 m/s.

Product Overview

NES-40.5 Metal Clad Switchgear is a reliable 40.5kV indoor medium voltage switchgear designed for three-phase AC 50Hz power systems. Featuring a metal-clad withdrawable structure, it provides safe power receiving and distribution, circuit control, protection, monitoring, and detection for power plants, substations, and industrial applications requiring frequent operation.
Compared with traditional 35 kV switchgear, NATUS 40.5kV metal-clad withdrawable AC switchgear adopts an assembled cubicle structure and a new composite-insulated vacuum circuit breaker. It is equipped with a forced mechanical five-prevention interlocking device and fully meets the five-prevention requirements. The large cable compartment supports flexible multi-cable wiring, and the three high-voltage compartments each have independent pressure relief channels, greatly improving operational safety. The 40.5kV air insulated metal clad switchgear fully complies with GB and IEC international standards, with stable and reliable performance.
NES-40.5 Metal-clad Withdrawable AC Switchgear

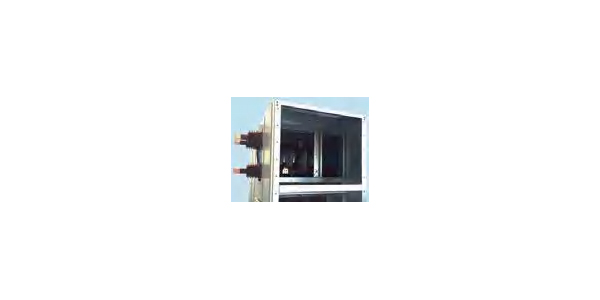

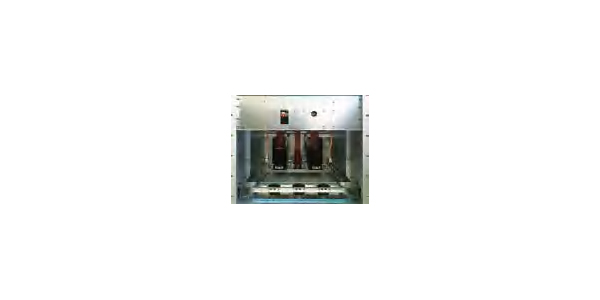

NES-40.5 Metal-clad Withdrawable AC Switchgear Structure

The 40.5 kv switchgear adopts a metal-clad withdrawable metal-enclosed structure, consisting of the cubicle frame and the withdrawable truck.
The cubicle is divided into four fully independent functional compartments.

Technical Advantages

01.
Convenient O&M design

NATUS metal-clad withdrawable switchgear supports safe closed-door operation with independent compartment design. This enables efficient maintenance without shutting down the entire busbar section, reducing downtime and improving operational reliability.

02.
Flexible Circuit Breaker Compatibility
The 40.5kV Metal Clad Switchgear is equipped with a standard BV40-40.5 series vacuum circuit breaker and supports integration with international brands such as Schneider HVX-40.5, providing flexible configuration options for different power distribution requirements.
03.
Independent pressure relief safety design
The air insulated metal clad switchgear features independent pressure relief channels for three high-voltage compartments. The directional fault pressure release design enhances operator safety and protects adjacent equipment during internal fault conditions.

Technical Specifications

Main Technical Parameters of NATUS NES-40.5 Metal Clad Switchgear


Basic Parameters
Rated VoltagekV40.5
Rated CurrentA630, 1250, 2000, 2500
Rated FrequencyHz50
Rated Short-circuit Breaking CurrentkA25, 31.5
Rated Short-circuit Making CurrentkA63, 80
Rated 4 s Thermal Stability CurrentkA25, 31.5
1 min Power Frequency Withstand VoltagekV95
Lightning Impulse Withstand VoltagekV185
Protection Class-IP4X



Main Technical Parameters of NES-40.5 Vacuum Circuit Breaker


Basic Parameters
Phase-to-phase distancemm300
Rated voltagekV40.5
Rated currentA1250, 1600, 2000, 2500
Rated peak withstand currentkA63/80
Rated short-time withstand current (4 s)kA25/31.5
Rated short-circuit breaking currentkA25/31.5
Rated operating sequence-O-0.3s-CO-180s-CO; O-180s-CO-180s-CO
Mechanical lifetimes10,000 / 30,000
Electrical lifetimes10,000 at rated current; 100 at full short-circuit current



Supporting Components


Basic Parameters
Current TransformerLZZB8-35Rated voltage 35 kV; primary current 20–2500 A; secondary current 5 A / 1 A; rated load 15–30 VA
Voltage TransformerJDZX9-35 / JDZ9-35Rated voltage 35 kV; rated load 1000 VA; different voltage ratio and accuracy classes available
Earthing SwitchJN15-40.5/31.5Rated voltage 40.5 kV; 4 s thermal stability current 31.5 kA; peak withstand current 80 kA; making speed >=6 m/s
Surge ArresterHY5WZ-51/134System rated voltage 35 kV; MOA rated voltage 51 kV; continuous operating voltage 40.8 kV; maximum lightning residual voltage <134 kV

Application
工业行业
新能源
石油石化

NES-40.5 Metal-clad Withdrawable AC Switchgear FAQ

NATUS medium voltage switchgear is equipped with BV40-40.5 series vacuum circuit breakers as standard, and also supports customization with internationally known brands such as Schneider HVX-40.5.
The standard 40.5 kv metal clad switchgear is suitable for areas with altitude <=1000m, and customized solutions can be provided for high-altitude areas.
The cable compartment has sufficient space and can connect multiple incoming and outgoing cables according to current rating and cable specification, meeting multi-circuit requirements.
Under normal operation, routine inspection is carried out every 1-2 years, mainly checking the operating mechanism, secondary circuit and insulation status.
Intelligent temperature monitoring, online partial discharge monitoring and live status monitoring can be added, and the system can be connected to distribution automation platforms.
NATUS Electric, an experienced MV Switchgear Manufacturer, offers a standard delivery cycle of approximately 4-5 weeks for NES-40.5 switchgear. Customized metal clad withdrawable switchgear projects typically require 5-7 weeks based on configuration, engineering requirements, and customization details.
