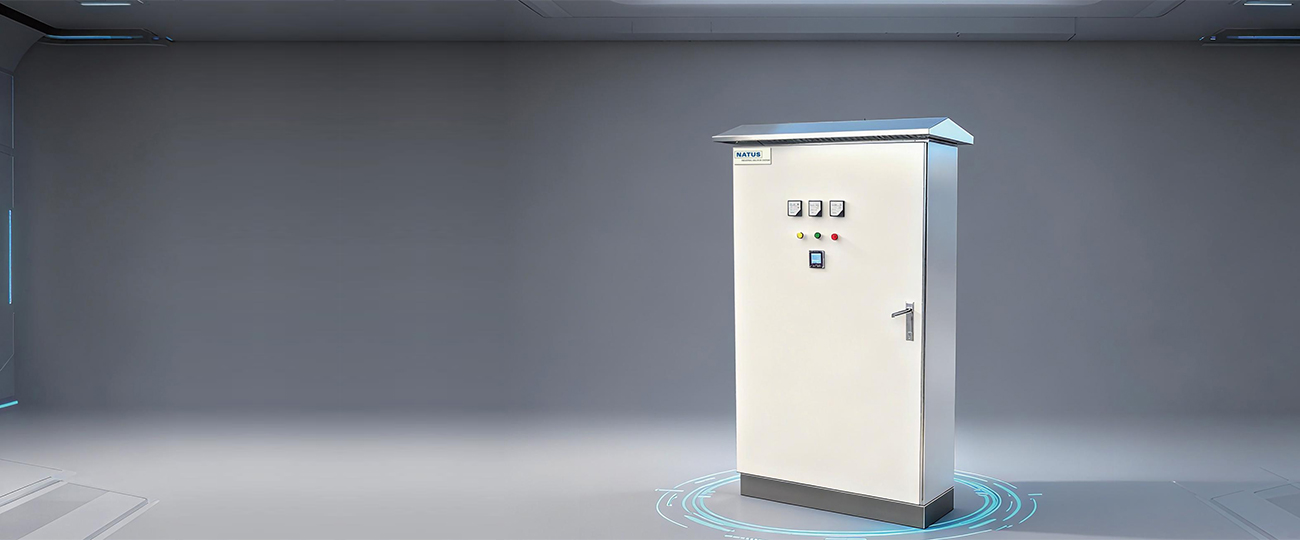

GXL low-voltage Power Distribution Cabinet

GXL low-voltage Power Distribution Cabinet
GXL low-voltage Power Distribution Cabinet
GXL low-voltage Power Distribution Cabinet

An all-round terminal distribution solution covering power / lighting distribution and variable-frequency control, with IP65 high protection for harsh environments.

IP65 protection
All-metal structure
Dual-series design
300 kW VFD power
Flexible customization
Modbus communication
Model:GXL
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Key Benefits

Dual-series coverage for all scenarios
Provides both ordinary power distribution type and variable-frequency control type to meet both terminal distribution and motor speed control needs.
High protection for harsh environments
The VFD control cabinet achieves an IP65 protection rating, is waterproof and dustproof, and can be directly used outdoors and in harsh industrial environments.
High-strength all-metal structure
Standing cabinets use 2 mm cold-rolled steel plate, wall-mounted boxes use 1.5mm cold-rolled steel plate, and the mitered integrated welding provides high strength.
Complete protection system
Integrates multiple protections including overcurrent, overvoltage/undervoltage, overload, phase loss and short circuit to ensure equipment safety.

Product Overview

GXL low-voltage distribution cabinet is a miniaturized intelligent terminal distribution device developed by NATUS Electric, including two major series: the ordinary power distribution cabinet and the GXL-VFD variable frequency drive control cabinet.The ordinary GXL low-voltage distribution cabinet is mainly used for power distribution and lighting supply, and is suitable for AC 500V and below three-phase four-wire / three-phase five-wire systems.
The GXL-VFD control cabinet is designed for motor start-stop protection and speed regulation. It is suitable for AC 50Hz systems with rated voltage below 690V and a maximum output power of 300kW. The low-voltage distribution cabinet adopts an all-metal semi-enclosed structure, fully complies with IEC 61439, GB 7251 and other international and Chinese standards, and is widely used in power plants, industrial and mining enterprises, civil buildings, petrochemical facilities and other scenarios.

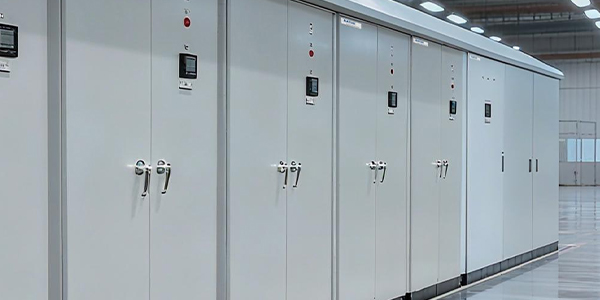

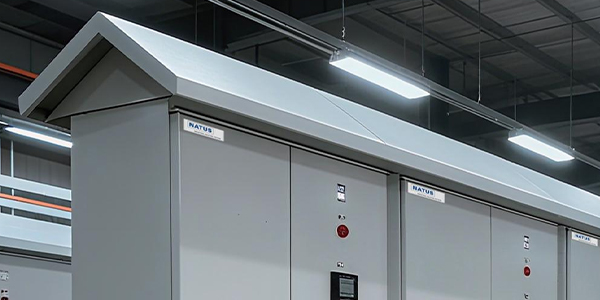

Product Structure

The structure of the cabinet (box) adopts all-metal shell, which can be assembled by steel profiles or welded by thin steel plate bending; The installation mode of the cabinet (box) is standing cabinet (or hanging box), and the standing cabinet adopts 2mm high-quality cold-rolled steel plate and the hanging box adopts 1.5mm high-quality cold-rolled steel plate;
The electrical installation board inside the cabinet (box) can be removed separately; The inlet and outlet cables are introduced from the bottom. Users have special requirements, can also be in the box on the top of the cover plate to open into the line knock-down hole or add bus room;

Technical Advantages

01.
Comprehensive electrical protection
Integrates overcurrent, overvoltage, undervoltage, overload, phase loss and short-circuit protection to effectively protect downstream motors and electrical equipment and reduce fault losses.
02.
Smooth stepless speed regulation
The VFD cabinet provides 0-50Hz stepless speed regulation. The motor starts smoothly at low frequency and low-voltage, reducing starting current impact, extending motor service life and saving energy.
03.
Intelligent remote management
Standard Modbus RTU communication can connect to PLC, SCADA and other upper-level control systems, enabling remote parameter setting, operating status monitoring and fault alarm.

Technical Specifications

Knife Fused Combination Switch


Basic Parameters
HR3-100/3410030, 40, 50, 60, 80, 100
HR3-200/3420080, 100, 120, 150, 200
HR3-400/34400150, 200, 250, 350, 400
HR3-600/34600350, 400, 450, 500, 600



Air Circuit Breaker


Basic Parameters
DZ20-10010016, 20, 25, 32, 40, 50, 60, 80, 100
DZ20-16016016, 20, 25, 30, 40, 50, 60, 80, 100, 125, 160
DZ20-225225100, 125, 160, 180, 200, 225
DZ20-250250100, 125, 160, 180, 200, 225, 250



Gxl-Vfd Variable Frequency Drive (Vfd) Control Cabinet


Basic Parameters
GXL-VFD-505, 7.5, 10, 15, 20, 30, 50 (≤50)220, 380, 690
GXL-VFD-10060, 75, 80, 100 (≤100)220, 380, 690
GXL-VFD-150120, 150 (≤150)220, 380, 690
GXL-VFD-200160, 180, 200 (≤200)220, 380, 690
GXL-VFD-250220, 250 (≤250)220, 380, 690
GXL-VFD-300275, 300 (≤300)220, 380, 690



Applicable Standards


Basic Parameters
GB/T 37144-2018Low-Voltage Cabinet - Electrical and Mechanical Structure
GB/T 3797-2016Electrical control equipment
GB 7251.1-2023low-voltage switchgear and controlgear assemblies
GB/T 4208-2017Degrees of protection provided by enclosures (IP Code)

Application Scenarios
工业行业-工业领域
石油石化
新能源

Product FAQ

The ordinary GXL is mainly used for power distribution and lighting supply, realizing circuit switching and protection. GXL-VFD is designed for motor start-stop protection and variable-frequency speed regulation, adjusting motor speed for energy saving and smooth control.
Yes. GXL-VFD uses a waterproof top cover and foam-sealed door panel process, passes the IP65 protection test, and can be directly installed outdoors in uncovered environments.
VFDs from NATUS Electric partner brands are supplied as standard, and customized integration of mainstream brands such as Schneider, ABB, Siemens and Inovance is supported.
Yes. Cabinet dimensions, cable inlet and outlet methods, functional configuration and enclosure color can all be customized. Specific requirements can be confirmed with the technical team.
Modbus RTU communication is supported as standard. Profibus-DP, EtherNet/IP and other protocols are optional, enabling seamless connection to PLC and SCADA control systems.
Two installation methods are available: floor-standing cabinet and wall-mounted box. The wall-mounted box supports up to 200A rated current; above 200A, the floor-standing cabinet is recommended.
