Ex e/Ex d Explosion-Proof Junction Box Manufacturer- Natus Electric Group Co., Ltd.

Key Benefits

Triple Global Explosion-proof Certification

Certified with IECEx, ATEX, CCC and China explosion-proof certificates, supporting global market access and application.

Full Coverage of Explosion-proof Protection Types

Supports Ex e increased-safety, Ex d flameproof and Ex ia/ib intrinsic-safety designs, covering gas Zones 0–2 and dust Zones 21–22.

Four Material Series

Available in ADC12 cast aluminum, glass-fiber-reinforced polyester, 304/316/316L stainless steel and Q235 carbon steel.

IP66 Fully Sealed Protection

IP66 protection with 7 J–10 J impact resistance, resisting dust, water splash, corrosion and mechanical impact.

Product Overview

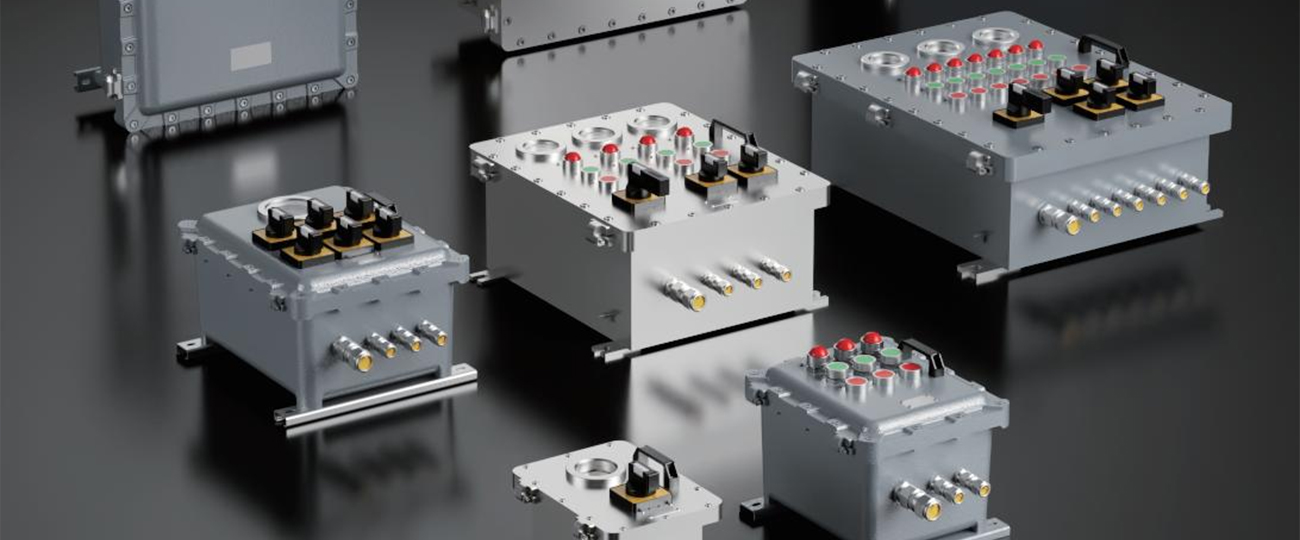

The NATUS Electric explosion-proof enclosure series includes two major categories: increased-safety type (Ex e) and flameproof type (Ex d). It is an industrial power distribution and control equipment series designed for hazardous areas with explosive atmospheres.

The series explosion-proof junction box is available in cast aluminum, glass-fiber-reinforced polyester, stainless steel and carbon steel. It has passed authoritative domestic and international explosion-proof certifications such as IECEx, ATEX and CCC, and can be safely used in explosive gas environments Zone 0, Zone 1 and Zone 2, as well as explosive dust environments Zone 21 and Zone 22. Ex e enclosures are suitable for junction and branching circuits, while Ex d enclosures are suitable for active components such as circuit breakers, Programmable Logic Controllers (Programmable Logic Controller (PLC)s) and instruments. With complete specifications ranging from 64 × 58 × 36 mm to 1200 × 1200 × 400 mm, the series explosion-proof junction box supports customized openings and internal configurations and is widely used in petroleum, petrochemical, chemical, pharmaceutical, energy and mining industries.

Technical Advantages

01.

High-strength Flameproof Enclosure Technology

Flameproof enclosures use a wall thickness of ≥20 mm and pass a 2.4 MPa hydrostatic test. Precision flameproof joints effectively prevent internal explosion flames from propagating to the external environment.

02.

Modular Flexible Configuration Technology

Standardized modular design allows flexible internal configuration of circuit breakers, contactors, PLCs, instruments, buttons, signal lamps and other components to meet different control and distribution requirements.

03.

Fast-response Customization Technology

Supports gland plate field opening, enclosure size customization, internal component customization and OEM/ODM cooperation. Standard explosion-proof junction box products are available from stock, and customized products can be delivered in 7–15 days.

Technical Specifications

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT51100011E	0.22	64	58	36
2	NT51100021E	0.76	98	64	36
3	NT51100031E	1.48	150	64	36
4	NT51100041E	2.18	115	65	55
5	NT51100051E	0.90	85	77	57
6	NT51100061E	1.89	127	82	57
7	NT51100071E	4.29	175	80	57
8	NT51100081E	5.95	250	80	57
9	NT51100091E	1.80	108	80	60
10	NT51100101E	3.32	140	80	60
11	NT51100111E	3.30	100	100	80
12	NT51100121E	3.71	160	100	80
13	NT51100131E	6.86	200	100	80
14	NT51100141E	2.51	125	125	80
15	NT51100151E	16.95	360	120	80
16	NT51100161E	7.77	220	125	80
17	NT51100171E	7.19	220	140	90
18	NT51100181E	4.00	160	160	90
19	NT51100191E	9.35	260	160	90
20	NT51100201E	17.56	360	160	90
21	NT51100211E	29.36	560	160	90
22	NT51100221E	11.40	280	180	100
23	NT51100231E	6.05	180	180	101
24	NT51100241E	9.48	230	200	110
25	NT51100251E	21.66	280	230	110
26	NT51100261E	27.62	330	230	120
27	NT51100271E	32.96	400	230	110
28	NT51100281E	38.30	403	313	111
29	NT51100291E	61.18	600	310	110

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	64	58	36	NT51100011E
2	98	64	36	NT51100021E
3	150	64	36	NT51100031E
4	115	65	55	NT51100041E
5	85	77	57	NT51100051E
6	127	82	57	NT51100061E
7	175	80	57	NT51100071E
8	250	80	57	NT51100081E
9	108	80	60	NT51100091E
10	140	80	60	NT51100101E
11	100	100	80	NT51100111E
12	160	100	80	NT51100121E
13	200	100	80	NT51100131E
14	125	125	80	NT51100141E
15	360	120	80	NT51100151E
16	220	125	80	NT51100161E
17	220	140	90	NT51100171E
18	160	160	90	NT51100181E
19	260	160	90	NT51100191E
20	360	160	90	NT51100201E
21	560	160	90	NT51100211E
22	280	180	100	NT51100221E
23	180	180	101	NT51100231E
24	230	200	110	NT51100241E
25	280	230	110	NT51100251E
26	330	230	120	NT51100261E
27	400	230	110	NT51100271E
28	403	313	111	NT51100281E
29	600	310	110	NT51100291E

Cable Gland Mount Surface and Cable Gland Model Matrix

NT5120E Series | Explosion-proof Junction Box

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT5120011E	0.53	80	75	75
2	NT5120021E	1.55	110	75	75
3	NT5120031E	2.41	160	75	75
4	NT5120041E	3.46	190	75	75
5	NT5120051E	4.79	230	78	78
6	NT5120061E	2.09	122	120	91
7	NT5120071E	6.99	220	120	91
8	NT5120081E	3.81	160	160	91
9	NT5120091E	7.79	260	160	91
10	NT5120101E	32.50	360	360	91
11	NT5120111E	26.70	560	160	91
12	NT5120121E	13.39	360	160	91
13	NT5120131E	12.58	255	250	121
14	NT5120141E	26.99	400	250	121
15	NT5120151E	47.43	600	250	121
16	NT5120161E	14.86	255	250	161
17	NT5120171E	32.14	400	250	161
18	NT5120181E	48.51	405	400	201
19	NT5120191E	48.49	400	400	210
20	NT5120201E	3.64	160	160	120
21	NT5120211E	43.01	810	400	210

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	80	75	75	NT5120011E
2	110	75	75	NT5120021E
3	160	75	75	NT5120031E
4	190	75	75	NT5120041E
5	230	78	78	NT5120051E
6	122	120	91	NT5120061E
7	220	120	91	NT5120071E
8	160	160	91	NT5120081E
9	260	160	91	NT5120091E
10	360	360	91	NT5120101E
11	560	160	91	NT5120111E
12	360	160	91	NT5120121E
13	255	250	121	NT5120131E
14	400	250	121	NT5120141E
15	600	250	121	NT5120151E
16	255	250	161	NT5120161E
17	400	250	161	NT5120171E
18	405	400	201	NT5120181E
19	400	400	210	NT5120191E
20	160	160	120	NT5120201E
21	810	400	210	NT5120211E

Cable Gland Mount Surface and Cable Gland Model Matrix

NT5120 With Flange Plate Series | Explosion-proof Junction Box

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT5120011E	0.53	80	75	75
2	NT5120021E	1.55	110	75	75
3	NT5120031E	2.41	160	75	75
4	NT5120041E	3.46	190	75	75
5	NT5120051E	4.79	230	78	78
6	NT5120061E	2.09	122	120	91
7	NT5120071E	6.99	220	120	91
8	NT5120081E	3.81	160	160	91
9	NT5120091E	7.79	260	160	91
10	NT5120101E	32.50	360	360	91
11	NT5120111E	26.70	560	160	91
12	NT5120121E	13.39	360	160	91
13	NT5120131E	12.58	255	250	121
14	NT5120141E	26.99	400	250	121
15	NT5120151E	47.43	600	250	121
16	NT5120161E	14.86	255	250	161
17	NT5120171E	32.14	400	250	161
18	NT5120181E	48.51	405	400	201
19	NT5120191E	48.49	400	400	210
20	NT5120201E	3.64	160	160	120
21	NT5120211E	43.01	810	400	210

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	80	75	75	NT5120011E
2	110	75	75	NT5120021E
3	160	75	75	NT5120031E
4	190	75	75	NT5120041E
5	230	78	78	NT5120051E
6	122	120	91	NT5120061E
7	220	120	91	NT5120071E
8	160	160	91	NT5120081E
9	260	160	91	NT5120091E
10	360	360	91	NT5120101E
11	560	160	91	NT5120111E
12	360	160	91	NT5120121E
13	255	250	121	NT5120131E
14	400	250	121	NT5120141E
15	600	250	121	NT5120151E
16	255	250	161	NT5120161E
17	400	250	161	NT5120171E
18	405	400	201	NT5120181E
19	400	400	210	NT5120191E
20	160	160	120	NT5120201E
21	810	400	210	NT5120211E

Cable Gland Mount Surface and Cable Gland Model Matrix

NT5130E Series | Explosion-proof Junction Box

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT5130011E	0.78	100	100	60
2	NT5130021E	3.60	150	150	80
3	NT5130031E	5.31	200	150	80
4	NT5130041E NT5130042E NT5130043E	10.07	300	200	110
5	NT5130051E NT5130052E NT5130053E	22.30	400	200	150
6	NT5130061E NT5130062E NT5130063E	37.13	400	400	150
7	NT5130071E NT5130072E NT5130073E	38.18	400	400	150
8	NT5130081E NT5130082E NT5130083E	47.19	500	400	150
9	NT5130091E NT5130092E NT5130093E	55.73	500	500	210
10	NT5130101E NT5130102E NT5130103E	63.38	600	400	210
11	NT5130111E NT5130112E NT5130113E	88.08	700	400	210
12	NT5130121E NT5130122E NT5130123E	157.37	700	700	300
13	NT5130131E NT5130132E NT5130133E	161.52	800	600	300
14	NT5130141E NT5130142E NT5130143E	271.17	1000	800	300
15	NT5130151E NT5130152E NT5130153E	207.30	800	800	400
16	NT5130161E NT5130162E NT5130163E	251.98	900	900	400
17	NT5130171E NT5130172E NT5130173E	577.77	1200	1200	400

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	100	100	60	NT5130011E
2	150	150	80	NT5130021E
3	200	150	80	NT5130031E
4	300	200	110	NT5130041E NT5130042E NT5130043E
5	400	200	150	NT5130051E NT5130052E NT5130053E
6	400	400	150	NT5130061E NT5130062E NT5130063E
7	400	400	150	NT5130071E NT5130072E NT5130073E
8	500	400	150	NT5130081E NT5130082E NT5130083E
9	500	500	210	NT5130091E NT5130092E NT5130093E
10	600	400	210	NT5130101E NT5130102E NT5130103E
11	700	400	210	NT5130111E NT5130112E NT5130113E
12	700	700	300	NT5130121E NT5130122E NT5130123E
13	800	600	300	NT5130131E NT5130132E NT5130133E
14	1000	800	300	NT5130141E NT5130142E NT5130143E
15	800	800	400	NT5130151E NT5130152E NT5130153E
16	900	900	400	NT5130161E NT5130162E NT5130163E
17	1200	1200	400	NT5130171E NT5130172E NT5130173E

Cable Gland Mount Surface and Cable Gland Model Matrix

NT5130E With Flange Plate Series | Explosion-proof Junction Box

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT5130051E NT5130052E NT5130053E	22.30	400	200	150
2	NT5130061E NT5130062E NT5130063E	37.13	400	400	150
3	NT5130071E NT5130072E NT5130073E	38.18	400	400	150
4	NT5130081E NT5130082E NT5130083E	47.19	500	400	150
5	NT5130091E NT5130092E NT5130093E	55.73	500	500	210
6	NT5130101E NT5130102E NT5130103E	63.38	600	400	210
7	NT5130111E NT5130112E NT5130113E	88.08	700	400	210
8	NT5130121E NT5130122E NT5130123E	157.37	700	700	300
9	NT5130131E NT5130132E NT5130133E	161.52	800	600	300
10	NT5130141E NT5130142E NT5130143E	271.17	1000	800	300
11	NT5130151E NT5130152E NT5130153E	207.30	800	800	400
12	NT5130161E NT5130162E NT5130163E	251.98	900	900	400
13	NT5130171E NT5130172E NT5130173E	577.77	1200	1200	400

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	400	200	150	NT5130051E NT5130052E NT5130053E
2	400	400	150	NT5130061E NT5130062E NT5130063E
3	400	400	150	NT5130071E NT5130072E NT5130073E
4	500	400	150	NT5130081E NT5130082E NT5130083E
5	500	500	210	NT5130091E NT5130092E NT5130093E
6	600	400	210	NT5130101E NT5130102E NT5130103E
7	700	400	210	NT5130111E NT5130112E NT5130113E
8	700	700	300	NT5130121E NT5130122E NT5130123E
9	800	600	300	NT5130131E NT5130132E NT5130133E
10	1000	800	300	NT5130141E NT5130142E NT5130143E
11	800	800	400	NT5130151E NT5130152E NT5130153E
12	900	900	400	NT5130161E NT5130162E NT5130163E
13	1200	1200	400	NT5130171E NT5130172E NT5130173E

Cable Gland Mount Surface and Cable Gland Model Matrix

NT9110B Series | Explosion-proof Electrical Control Panel Device

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT9110012B	50	300	200	190
2	NT9110022B	80	360	300	245
3	NT9110032B	150	460	360	245
4	NT9110042B	200	560	460	245
5	NT9110052B	220	560	460	340
6	NT9110062B	340	720	560	245
7	NT9110072B	400	720	560	340
8	NT9110082B	500	860	660	340
9	NT9110092B	650	860	660	480

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	300	200	190	NT9110012B
2	360	300	245	NT9110022B
3	460	360	245	NT9110032B
4	560	460	245	NT9110042B
5	560	460	340	NT9110052B
6	720	560	245	NT9110062B
7	720	560	340	NT9110072B
8	860	660	340	NT9110082B
9	860	660	480	NT9110092B

Cable Gland Mount Surface and Cable Gland Model Matrix

NT9130B Series | Explosion-proof Electrical Control Panel Device

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT9130012B	55	300	200	190
2	NT9130022B	85	360	300	190
3	NT9130032B	200	460	360	245
4	NT9130042B	230	560	460	245
5	NT9130052B	300	560	460	340
6	NT9130062B	440	720	560	245
7	NT9130072B	500	720	560	340
8	NT9130082B	550	860	660	245
9	NT9130092B	650	860	660	415

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	300	200	190	NT9130012B
2	360	300	190	NT9130022B
3	460	360	245	NT9130032B
4	560	460	245	NT9130042B
5	560	460	340	NT9130052B
6	720	560	245	NT9130062B
7	720	560	340	NT9130072B
8	860	660	245	NT9130082B
9	860	660	415	NT9130092B

Cable Gland Mount Surface and Cable Gland Model Matrix

NT9140B Series | Explosion-proof Electrical Control Panel Device

Product category

Dissipation Power Meter

No.	Model	Maximum Dissipation Power (W)	Box Dimension A (mm)	Box Dimension B (mm)	Box Dimension C (mm)
1	NT9140012B	55	300	200	190
2	NT9140022B	85	360	300	190
3	NT9140032B	200	460	360	245
4	NT9140042B	230	560	460	245
5	NT9140052B	300	560	460	340
6	NT9140062B	440	720	560	245
7	NT9140072B	500	720	560	340
8	NT9140082B	550	860	660	245
9	NT9140092B	650	860	660	415

Hole Opening Data

No.	Long A (mm)	Wide B (mm)	High C (mm)	Model
1	300	200	190	NT9140012B
2	360	300	190	NT9140022B
3	460	360	245	NT9140032B
4	560	460	245	NT9140042B
5	560	460	340	NT9140052B
6	720	560	245	NT9140062B
7	720	560	340	NT9140072B
8	860	660	245	NT9140082B
9	860	660	415	NT9140092B

Cable Gland Mount Surface and Cable Gland Model Matrix

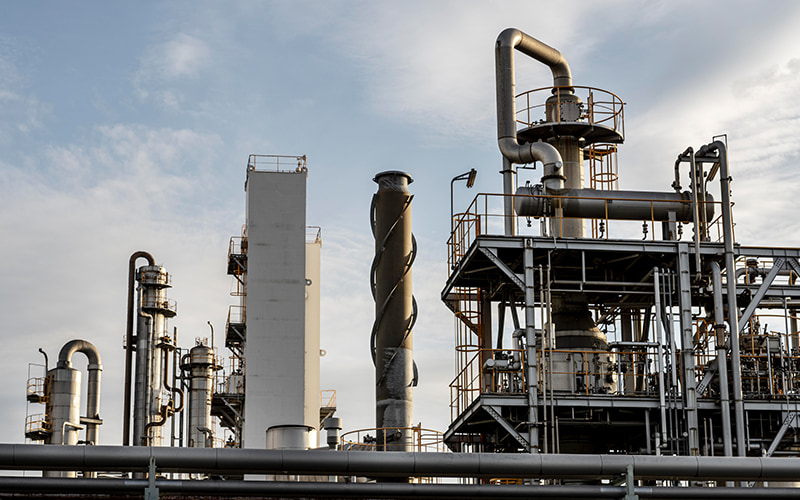

1. Petroleum and petrochemical industry

Ex d flameproof explosion-proof junction box type can be used in IIB + hydrogen environments. IP66 protection resists oil gas and corrosion, while global certifications meet export project requirements.

2. Chemical and pharmaceutical industry

Multiple material options adapt to different chemical corrosion environments. Ex e explosion-proof junction box is used for wiring and Ex d explosion-proof junction box is used for control circuits, while full explosion-proof certification meets safety supervision requirements.

3. Energy and power industry

Wide-temperature operation supports outdoor environments. High reliability ensures continuous power system operation and supports customized distribution solutions.

4. Mining and metallurgy industry

High-strength structure resists impact. IP66 protection blocks dust and water spray. Flameproof type is suitable for gas explosion hazardous environments.

5. Rail transit industry

Compact design saves space, high reliability supports operational safety, and the product complies with explosion-proof requirements in rail transit applications.

6. Food processing industry

304/316 stainless steel materials meet food hygiene requirements. Smooth surfaces are easy to clean, and explosion-proof design meets dust explosion protection requirements.

Product FAQ

What is the difference between Ex e and Ex d explosion-proof enclosures?

Ex e enclosures prevent dangerous sparks, arcs or high temperatures through additional safety measures and are suitable for junction and branching circuits. Ex d enclosures isolate an internal explosion from the external environment through a high-strength housing and are suitable for active components such as circuit breakers and PLCs.

How should different enclosure materials be selected?

For general environments, choose cast aluminum. For highly corrosive environments, choose 316 stainless steel. For high insulation requirements, choose polyester. For cost-sensitive applications, choose carbon steel. The final selection should consider corrosion, temperature, humidity and other operating conditions.

Which certifications are supported, and can the products be exported?

The products are certified with IECEx, ATEX, CCC and China explosion-proof certificates, enabling export to most countries and regions worldwide and meeting explosion-proof regulatory requirements.

Can openings and internal configurations be customized?

Yes. NATUS Electric supports gland plate field opening, enclosure size customization, internal component customization and exterior color customization. OEM/ODM services are also available for customer labeling and packaging requirements.

What is the wall thickness of the flameproof enclosure, and is it safe?

The wall thickness of the flameproof enclosure is ≥20 mm and it passes the 2.4 MPa hydrostatic test. It can withstand internal explosion pressure, and the precision flameproof joint prevents flame propagation.

Which hazardous areas are the products suitable for?

Ex e type is suitable for explosive gas environments Zone 0, Zone 1 and Zone 2 and explosive dust environments Zone 21 and Zone 22. Ex d type is suitable for explosive gas environments Zone 1 and Zone 2 and explosive dust environments Zone 21 and Zone 22.

Which brands of components can be installed inside?

Components from Schneider, ABB, Siemens, Omron, Weidmuller, Phoenix Contact and other domestic and international brands can be installed, including circuit breakers, contactors, PLCs, instruments and terminals.

Natus Electric Group Co., Ltd.

Home

Products

Solutions

Industries

About Us

News & Insights

Support

High-Voltage Switchgear

Low-Voltage Switchgear

Intelligent Components

Busway

Explosion-Proof Junction Box

Natus Electric Group Co., Ltd.

High-Voltage Switchgear

Low-Voltage Switchgear

Intelligent Components

Busway

Explosion-Proof Junction Box

Key Benefits

Product Overview

Technical Advantages

Technical Specifications

Product FAQ

Request Free Quote & Technical Data
