EZ-POWER Plug-in Power Distribution Cabinet丨NATUS Power Distribution Equipment

Key Benefits of NATUS Power Distribution Cabinet

Hot-plugging without power outage

NATUS Plug-in Power Distribution Cabinet supports live insertion and withdrawal of branch switches without interrupting other circuits, improving maintenance efficiency and ensuring continuous operation of the electric distribution system.

Ultra-high distribution density

Designed as efficient electrical distribution switchgear, the electric distribution system supports up to 72 outgoing circuits from a single busbar, saving installation space and optimizing power distribution layouts compared with traditional cabinets.

Extreme fire-resistant safety

NATUS power distribution cabinet features an epoxy resin integral-cast busbar that maintains reliable insulation performance after 3 hours of flame exposure at 750℃, enhancing electrical safety in demanding applications.

Multi-brand MCCB compatibility

The electrical distribution cabinet supports mainstream 1P/2P/3P MCCBs from NATUS Electric, Schneider, Siemens, ABB, and other brands, providing flexible configuration options for different electric distribution system requirements.

Product Overview

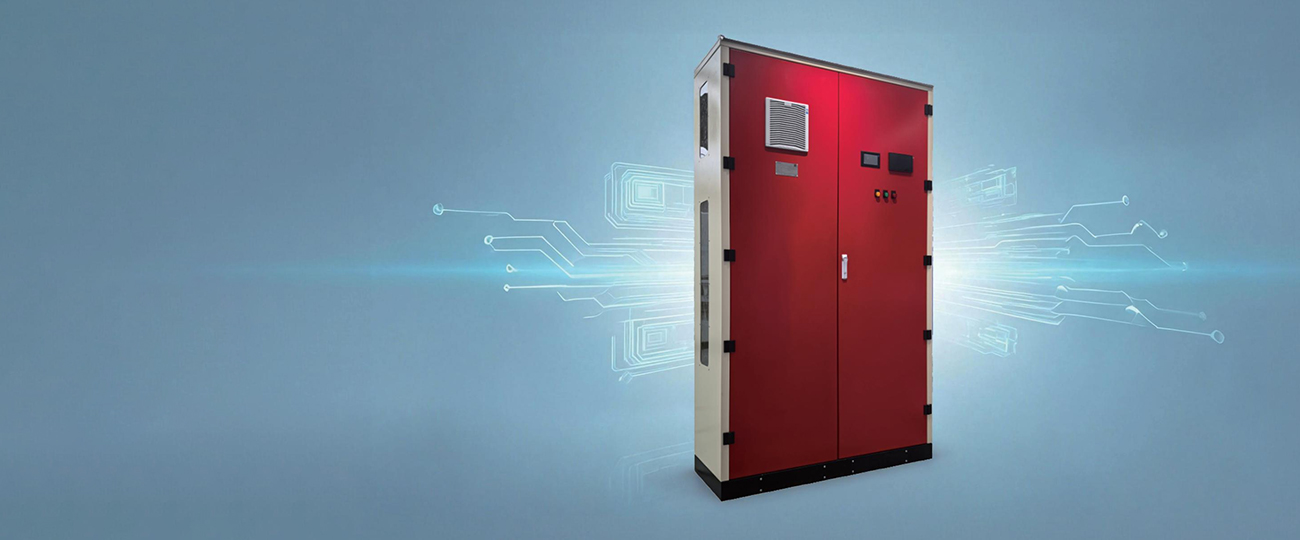

EZ-POWER Plug-in Power Distribution Cabinet is a new-generation end-end power distribution device independently developed by NATUS Electric for scenarios requiring extremely high power supply continuity.

Compared with traditional fixed distribution cabinets, NATUS Power Distribution Cabinet adopts a plug-in branch switch design, allowing circuits to be added, replaced or maintained while the equipment is energized, without any power outage. The integrated conductor and epoxy-resin cast busbar technology greatly improve current-carrying capacity and fire safety. The high-density design supports up to 72 circuits per cabinet, significantly saving distribution room space. The electric distribution system fully complies with GB/T 7251.2 and IEC 61439-2 international standards and is widely used in 24-hour uninterrupted power supply scenarios such as semiconductor, LCD display, hospitals and rail transit.

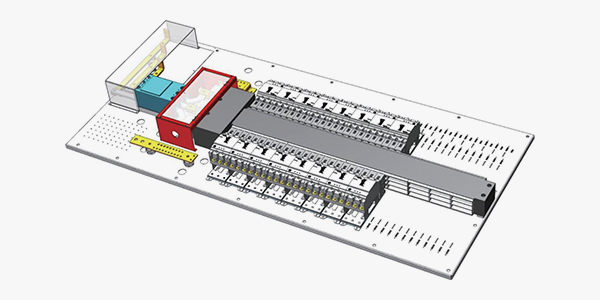

NATUS EZ-POWER Plug-in Power Distribution Cabinet Structure

1. Double-layer door panel system

The outer door accommodates metering instruments / monitoring units, while the inner door provides safety protection to prevent accidental contact with live parts.

2. Main frame

Aluminum-zinc coated steel plate with a multi-layer bending process, high strength and corrosion resistance; the surface is treated with electrostatic powder coating.

3. Busbar system

Epoxy-resin composite material integrally cast, with integrated toothed insulation shielding and IP21 protection class.

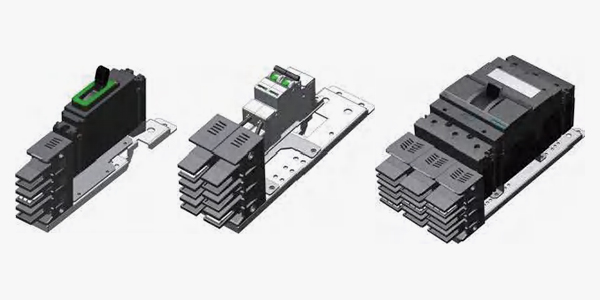

4. Branch switch unit

Plug-in Molded Case Circuit Breaker (MCCB) with safety hanging design; independent sockets for each phase prevent wrong insertion.

5. All-round protection system

All primary and secondary live parts are isolated by polycarbonate (PC) protective covers, and the cabinet enclosure protection class is IP41.

6. Safety design

The busbar meets IK10 impact level; unused sockets can be sealed with protective devices; the branch switch has safety hanging protection before insertion to prevent falling.

EZ-POWER Plug-in Power Distribution Cabinet

Plug-in switch, easy to expand, no power shutdown required. Easy load change, efficient maintenance. Small size/space saving. Flexibility to choose from a variety of brands of MCCBs to meet the needs of users. Simple application, safety and easy operation, effectively reducing future operating costs.

The MCCB can be used with a variety of brands and 1P, 2P and 3P MCCB switches. MCCB can be inserted and withdrawn with power, quick and easy to increase or decrease the load. The conductive clamp contact surface features silver-plated treatment, with the external spring plate securely crimped flat to withstand a 54kg insertion force test.

NATUS Power Distribution Cabinet Technical Advantages

01.

All-round safety protection system

The Plug-in Power Distribution Cabinet integrates IP21 busbar protection, full PC board isolation, IK10 impact resistance, and safety hanging features to reduce risks of electric shock, misoperation, and mechanical damage, ensuring reliable operation of the electric distribution system.

02.

Fast installation and maintenance technology

Designed as efficient electrical distribution switchgear, the modular plug-in structure allows branch switches to be installed and removed with a standard screwdriver. The simplified installation process improves project efficiency by up to 60% and enables convenient maintenance.

03.

Flexible expansion design

The EZ-POWER Plug-in Power Distribution Cabinet supports reserved plug-in outlets for future circuit expansion, eliminating the need to define all loads during the initial project stage. This flexible design helps shorten project cycles and adapts to changing power distribution requirements.

EZ-POWER Plug-in Power Distribution Cabinet Technical Specifications

General Technical Specifications

Basic Parameters
Standard	GB/T 7251.2; IEC 61439-2
Ambient temperature	-15℃ / +40℃; average 35℃
Altitude	<2000 m
Type	TC250 / TC400 / TC630 / TC800 / TC1000 / TC1250 / TC1600
Rated voltage	208 / 220 / 380 / 440 / 480 / 690 V
Rated current	250 / 400 / 600 / 800 / 1000 / 1250 / 1600 A
Frequency	50/60 Hz
Breaking capacity	65 / 65 / 65 / 65 / 80 / 80 / 100 kA
System type	Molded case switch incoming line / frame circuit breaker incoming line / copper bar incoming line

Busbar

Basic Parameters
Type	B400, B630, B800, B1250, B1600, B3200 (non-standard customization)
Conductor	Copper with tin plate
Insulation material	Epoxy cast resin
Insulation level	F class, 155℃
Number of sockets	36P / 54P / 72P
Fire rating	IEC 60331 750℃ 3 hr / IEC 60332 / UL94 V0
Protection level	Main busbar IP21; cabinet shell IP41
Colour	Customized according to customer requirements; default color is RAL7043

Shunt Switch

Basic Parameters
Insertion type	Plug-in type
Number of poles	1P/2P/3P
Maximum rated capacity	800 A
MCCB brand	According to design requirements or customer needs, NATUS Electric, Schneider, Siemens and ABB are recommended.
Frame type	F250 / F630 / F1250
Primary side protection class	IP21

Cabinet

Basic Parameters
Cabinet type	Wall mount / floor type
Paint baking method	Electrostatic spray
Paint thickness	50 μm for indoor use / 70 μm for outdoor use
Shell protection	IP41

1. Semiconductor and electronics

NATUS Plug-in Power Distribution Cabinet supports 24/7 continuous production with hot-plugging maintenance, avoiding power interruptions and ensuring reliable operation of critical electric distribution systems.

2. LCD display industry

The EZ-POWER Plug-in Power Distribution Cabinet provides high-density circuit distribution and stable power supply for large-scale LCD production lines with demanding continuity requirements.

3. Medical industry

The Plug-in Power Distribution Cabinet provides safe and reliable power supply for ICUs, operating rooms, and critical medical equipment where uninterrupted operation is essential.

4. Airports and rail transit

The NATUS power distribution cabinet ensures stable power distribution for airports and rail transit systems, supporting reliable operation in high-demand public infrastructure environments.

5. Data centers

The Plug-in Power Distribution Cabinet delivers high-density power distribution for server cabinets, while hot-plugging enables online maintenance without interrupting IT operations.

6. High-end business centers

The electrical distribution cabinet supports continuous commercial operations with maintenance without power outages, minimizing disruption to tenants and building services.

EZ-POWER Plug-in Power Distribution Cabinet FAQ

Can branch switches really be inserted and withdrawn while energized? Is it safe?

Yes. EZ-POWER power distribution cabinet uses independent phase sockets, and the energized busbar parts are protected to IP21. There is no electric shock risk during plug-in operation. A safety hanging device also prevents the switch from falling before insertion or after withdrawal, making operation safe.

How many outgoing circuits can one electrical distribution cabinet support at most?

A single busbar supports up to 72 outgoing circuits. 36P, 54P or 72P module specifications can be selected according to actual needs, and the width of 1P is 35mm.

Which MCCB brands are supported?

Standard compatibility covers mainstream 1P, 2P and 3P MCCBs from NATUS Electric, Schneider, Siemens and ABB. Other brands can also be customized according to customer requirements.

Can the busbar really achieve 3-hour fire resistance?

Yes. The busbar is integrally cast from epoxy resin composite material and has passed IEC 60331 testing. It does not short-circuit after 3 hours of flame burning at 750℃, meeting the highest fire protection requirements.

Are special tools required for installation and replacement?

No. Only a common flat-head screwdriver is required to install and remove branch switches. No professional training is required, and operation is simple and convenient.

Is a customized 3200A high-current solution available for the power distribution cabinet?

Yes. Standard power distribution cabinet products cover 250A-1600A, and 3200A high-current non-standard customization is supported for special projects.

What power distribution cabinet installation methods are available?

Wall-mounted and floor-standing installation methods are available. Small-current specifications (≤400A) can be wall-mounted, while large-current specifications are recommended to use floor-standing installation.
